Adjusting camshaft timing on right side (S63T2) (X5 M)

Special tools required:

• 2 249 117
• 2 249 137
• 2 249 140
• 11 9 190
• 11 8 570
• 11 4 350
• 00 9 120

Risk of damage  to timing drive.

(cylinder bank 1 to 4)

Necessary preliminary tasks:

• Remove right TIMING CASE COVER .
• Check camshaft TIMING  on right side.

Get set of special tools 2 249 117 ready for securing camshafts.

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 137 on intake camshaft.

Position exhaust camshaft with special tool 2 249 140 and attach to special tool 2 249 137.

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolts (1 and 2) of intake and exhaust camshaft adjusters.

Installation note:

Replace central bolts after releasing.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with copper paste.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolts (1 and 2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190.

Courtesy of BMW OF NORTH AMERICA, INC.

Position engine with special tool 11 9 190 in front of special tool 11 8 570 as shown in graphic.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The tightening sequence begins with the exhaust camshaft.

Insert central bolt (1) of exhaust camshaft with special tool 11 4 350.

Joining torque 5 Nm  .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 11 4 350.

Joining torque 5 Nm  .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the engine at the central bolt further until the special tool 11 9 190 can be positioned in the gear case cover.

The engine is now in the 150° crankshaft position before the TDC firing position of cylinder 1.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten central bolts beginning with the exhaust camshaft.

Insert central bolt (1) of exhaust camshaft with torque.

Tightening torque of 30 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with torque.

Tightening torque of 30 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

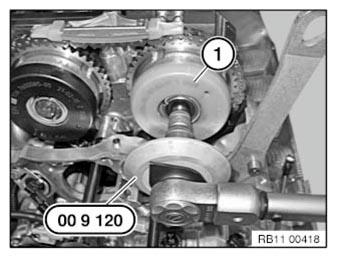

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120.

TORSION ANGLE ADJUSTMENT120°

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 00 9 120.

TORSION ANGLE ADJUSTMENT120°

Remove special tool 2 249 117.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 9 190 and 11 8 570.

Crank engine at central bolt twice in direction of engine rotation until engine returns to 150° before cylinder no. 1 firing TDC position  .

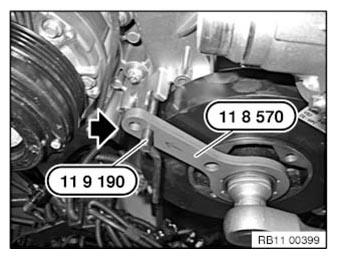

Secure vibration damper with special tools 11 8 570 and 11 9 190 in the 150° TDC firing position, cylinder 1  .

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool 2 249 137 on intake camshaft and check timing adjustment.

Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool 2 249 140 on the exhaust camshaft and check timing adjustment.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
