Removing and installing complete exhaust system (S63 B44 T 2) (X5 M)

WARNING: Risk of burning!
Only perform this repair work after engine has cooled down.
Danger of injury!
Removal of the exhaust system must be carried out with the assistance of a second person.

Necessary preliminary work

Use a suitable jack to support and secure the exhaust system against falling.

Removal:

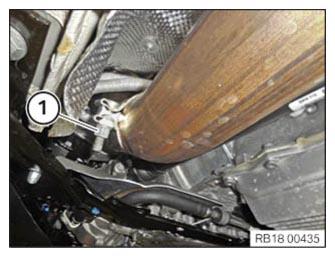

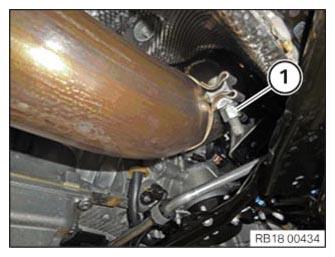

Release clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

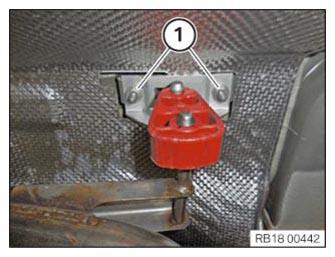

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

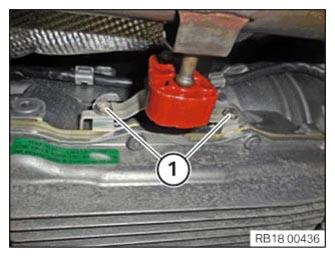

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

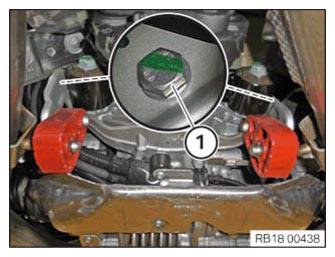

Release screws (1) at the back on the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

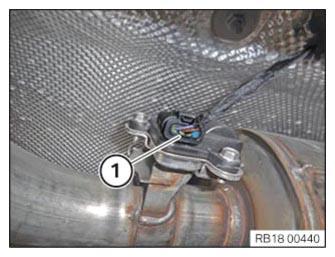

Unlock connector (1) and pull off.

Courtesy of BMW OF NORTH AMERICA, INC.

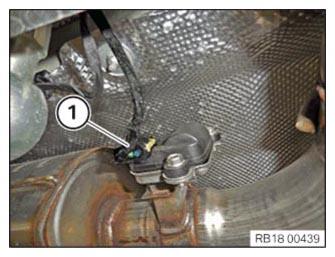

Unlock connector (1) and pull off.

Courtesy of BMW OF NORTH AMERICA, INC.

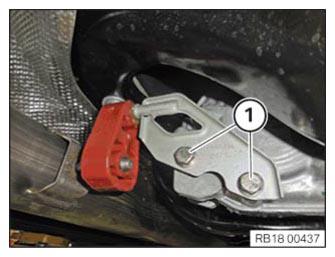

Unscrew nuts (1).

Remove earth strap.

Courtesy of BMW OF NORTH AMERICA, INC.

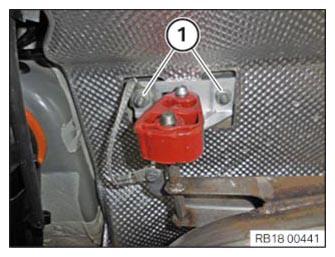

Unscrew nuts (1).

Lower and remove exhaust system with assistance of a second person.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Check rubber mount for damage, replace if necessary.

Installation:

Install exhaust system and connect to catalytic converter with the assistance of a second person.

Part: Replace clamp (1).

Tighten clamp (1).

Tightening torque 18 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace clamp (1).

Tighten clamp (1).

Tightening torque 18 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount holder.

Part: Replace nuts (1).

Tighten down nuts (1).

Tightening torque 18 20 4AZ. .

Courtesy of BMW OF NORTH AMERICA, INC.

Install the holder and mount the ground strap.

Part: Replace nuts (1).

Tighten down nuts (1).

Tightening torque 18 20 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount holder.

Part: Replace screws (1).

Tighten screws (1) at the back on the rear axle differential.

Tightening torque 18 20 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount holder.

Part: Replace screws (1).

Tighten down screws (1).

Tightening torque 18 20 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Mount holder.

Part: Replace screws (1).

Tighten down screws (1).

Tightening torque 18 20 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1).

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check exhaust system for leaks.
