Remove and install/replace transmission oil cooler (S63 B44 T 2) (X5 M)

Cover alternator with suitable materials.

Failure to comply with this procedure may result in an alternator malfunction.

Necessary preliminary tasks:

• Remove FAN COWL .

Removal:

Release screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove circlips.

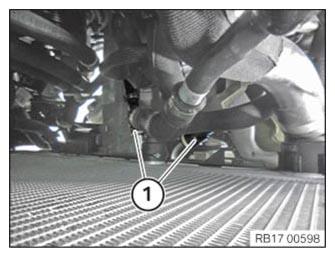

Push lines (1) towards transmission oil cooler. Pull locking ring towards rear and keep pressed.

Detach lines (1) from transmission oil cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

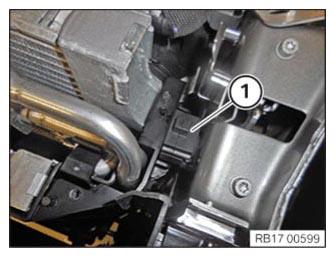

Lift out left stop pad (1) at radiator core.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

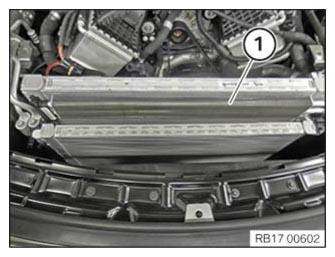

Unclip transmission oil cooler (1) from clamp.

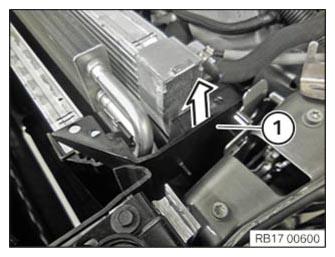

Feed out transmission oil cooler (1) upwards and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

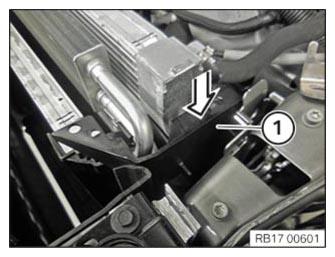

Feed in transmission oil cooler (1) and install.

Fasten transmission oil cooler (1) to clamp.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in trim (1) and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in stop pad (1) at left onto radiator package and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect lines (1) to transmission oil cooler.

Lines (1) must latch audibly into transmission oil cooler.

Install snap rings.

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (2).

Tighten down screws (1).

Tightening torque 17 10 5AZ. .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FAN COWL .
• Check oil level in oil reservoir for DYNAMIC DRIVE and top up.
