Replacing right monitoring sensor (S63T2) (X5 M)

Special tools required:

• 11 7 020

Necessary preliminary tasks:

• Check function of DME control unit.
• Remove HOLDER . .

Release retaining clip (1).

Detach oxygen sensor cable from retaining clips (3).

Graphic N63.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen clamp and wipe off heat shield wire ring on oxygen sensor.

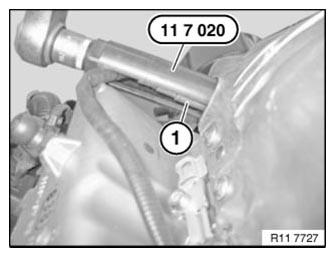

Release monitoring sensor (1) with special tool 11 7 020.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The threads of new oxygen control/monitoring sensors are already coated with 4.2 NEVER SEEZ COMPOUND  (refer to the applicable BMW Parts Catalogue).

If a lambda control/monitoring sensor is to be reused, apply a thin and even coating of Never Seez Compound to the thread only.

The part of the lambda control/monitoring sensor which projects into the exhaust branch (sensor ceramics) must not be cleaned and not coated with lubricant.

Fasten monitoring sensor (1) with special tool 11 7 020.

Tightening torque 11 78 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check function of DME control unit.

Pay attention to cable routing of monitor sensor.
