Removing and installing/replacing rear (inside) left or right door sill cover strip (X5 M)

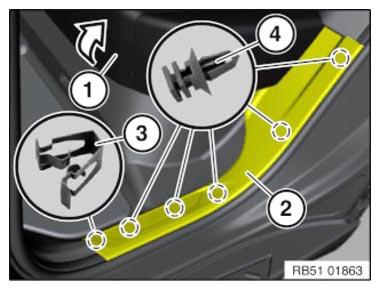

Version without 3rd row of seats:

Unclip rear seat (1) toward the top.

Release the door sill cover strip (2) at clamp (3) and clamp (4) toward the top.

Installation note:

Replace faulty clamp (3) and clips (4).

Fit door sill cover strip (2) with preassembled clips (4).

Courtesy of BMW OF NORTH AMERICA, INC.

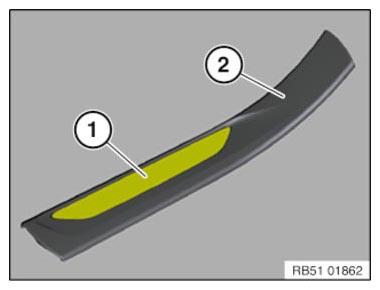

Replacement:

Unclip insert (1) from door sill trim strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

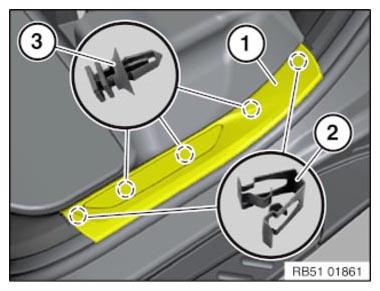

Version with 3rd row of seats:

Release the door sill cover strip (1) at clamp (2) and clips (3) toward the top.

Installation note:

Replace faulty clamp (2) and clips (3).

Fit door sill cover strip (1) with preassembled (3).

Courtesy of BMW OF NORTH AMERICA, INC.

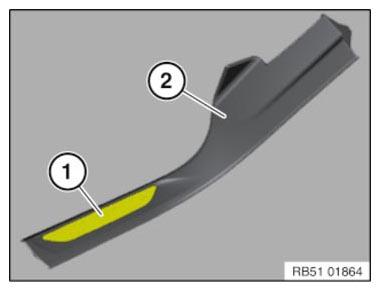

Replacement:

Unclip insert (1) from door sill trim strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.
