Removing and installing/replacing cover for rear bottom center bumper panel (X5 M)

Removal:

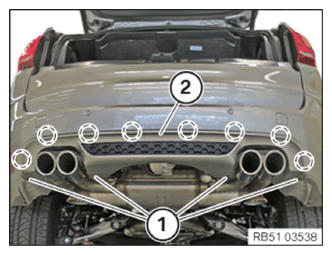

Release screws (1).

Unclip trim (2) from latch mechanisms to rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip trim (2) Into latch mechanisms.

Tighten down screws (1).

NOTE: Latch mechanisms on cover (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
