Removing and refitting/replacing (side) ornamental grille in bumper panel (X5 M)

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL .

Removal:

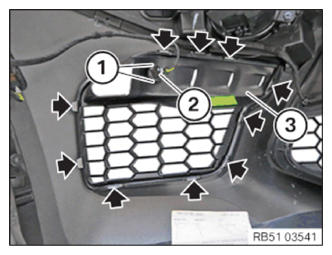

Release latch mechanisms (1) and remove sensor (2).

Release the latch mechanisms from ornamental grille (3).

Remove the ornamental grille (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install ornamental grille (3) and engage In the latch mechanism.

Install sensor (2) and engage in the latch mechanisms (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install front BUMPER PANEL .
