Replacing a brake pad wear sensor (front) (X5 M)

IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad). If a brake pad wear sensor that has already been sanded has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.

Necessary preliminary tasks:

Remove WHEEL .

Removal:

Disengage cable guides (2).

Open cover (1) on connector housing.

Disconnect plug connection.

Disengage cable from cable guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.

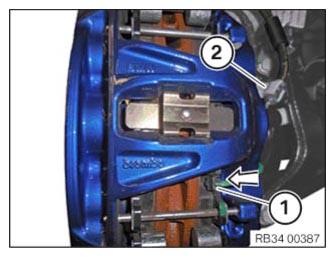

Pull brake pad wear sensor (1) in direction of arrow out of brake pad.

Unhook bracket (2) from brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install brake pad wear sensor (1) in the brake pad in direction of arrow.

Attach bracket (2) to brake hose.

NOTE: Check brake pad wear sensor (1) is correctly seated in brake pad.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable routing (2).

Connect the plug connection.

Close cover (1) on connector housing.

Attach cable to cable routing (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Mount the WHEEL .
