Removing and installing/replacing left/right backrest side section of rear seat backrest (through-loading facility) (X5 M)

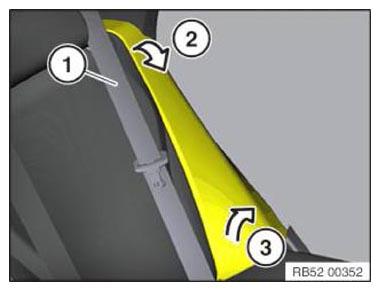

Pull seat belt (1) to middle and place behind head restraint.
Unclip backrest side section in direction of arrow (2) towards front and pull out in direction of arrow (3).
If necessary, pull out clamp (1) towards front.
Check clip (1) and locator (2) for damage.
Snap clamp (1) into locator (2) of backrest side section.
Insert guides (1) into locators.
clamp backrest side section at top into place.
Installation note:
Make sure backrest side section is correctly seated in locators.
