Removing and installing/replacing footwell light (X5 M)

Special tools required:

• 64 1 020

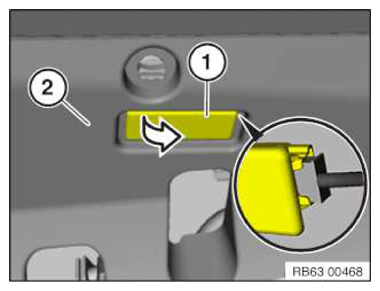

Footwell, left:

Lever footwell light (1) in direction of arrow out of trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

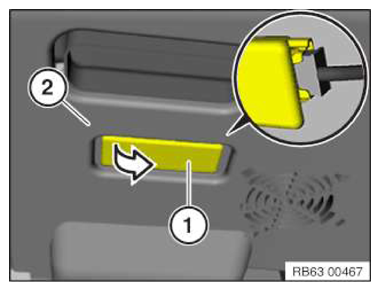

Footwell, right:

Lever footwell light (1) in direction of arrow out of trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

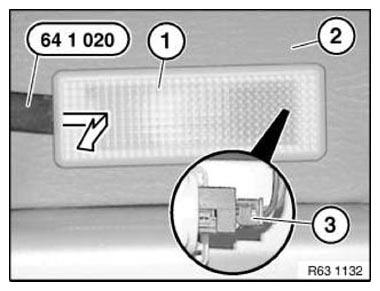

Door, left/right:

Lever footwell light (1) out of door trim panel (2) in direction of arrow using special tool 64 1 020.

Disconnect plug connection (3) and remove footwell light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Take note of the BULB TYPE , swap over bulb if necessary.
