Installing and removing/replacing vehicle hoist mounting (X5 M)

Special tools required:

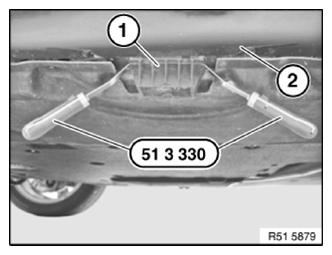

Insert special tool 51 3 330 between vehicle hoist mounting (1) and vehicle underbody (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of corrosion!
TOUCH UP PAINTWORK DAMAGE .
Re-establish wax layer.
