Removing and installing/replacing side trim panel, footwell, on A-pillar, left (X5 M)

Special tools required:

• 00 9 325

Necessary preliminary tasks:

• Remove FRONT DOOR SILL COVER STRIP .
• Remove TRIM PANEL FOR PEDAL ASSEMBLY .

  Detach edge protection (1) in area of side trim panel.

  Release screw (2) and remove release lever (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

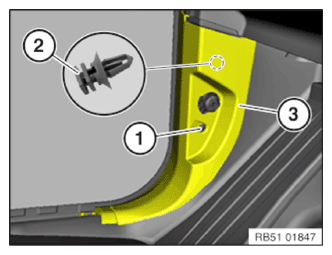

  Release screw (1).

  Unclip clip (2) using special tool 00 9 325.

  Remove trim panel (3) towards inside.

Installation note:

Replace the faulty clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.
