Replacing front radiator grille, middle left or right (X5 M)

Special tools required:

• 00 9 327

Lever out chrome ring (1) in top area with special tool 00 9 327.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out top of chrome ring (1) outwards slightly.

Courtesy of BMW OF NORTH AMERICA, INC.

Release latch mechanisms (1) and pull radiator grille (2) outwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Only for version with night vision:

Unlock and disconnect plug connection (1) and (hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.

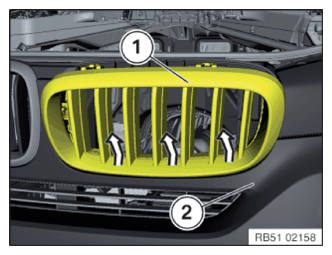

Remove radiator grille (1) upwards in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All catch mechanisms and guides on the front radiator grille (2) may be neither damaged or missing.

Press on chrome ring to push front radiator grille (1) into bumper trim.

Fixtures must be correctly locked.

Courtesy of BMW OF NORTH AMERICA, INC.

Only for version with night vision:

Replacement:

• Remount the NIGHT VISION CAMERA .
