Removing and installing/replacing support for rear bumper panel (X5 M)

Necessary preliminary tasks:

• Remove BUMPER PANEL .

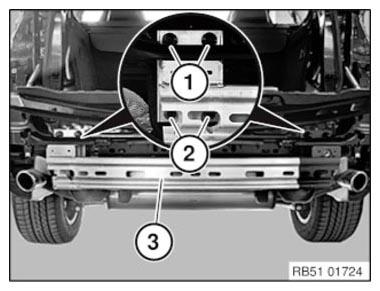

If necessary, release cable clip from support (3).

Remove covers (1) and slacken nuts.

Slacken nuts (2) and remove support (3).

Tightening torque 51 12 1AZ .
