61 31 321 Removing and installing radio and A/C control panel

Special tools required:

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

IMPORTANT: Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.

Necessary preliminary work:

Insert special tool 00 9 340 (00 9 341) as illustrated.

Lever trim cover (1) slightly forward and unclip.

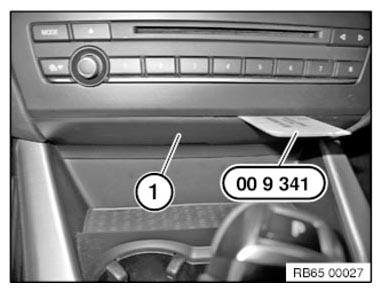

Fig 1: Removing A/C Control Panel Trim Cover Using Special Tool (00 9 341)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip LED (1).

Remove cover (2).

Installation note:

Retaining lugs and clips must not be damaged.

Fig 2: Identifying A/C Control Panel Trim Cover And LED

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Remove control panel (1) towards front.

Unlock associated plug connections and disconnect.

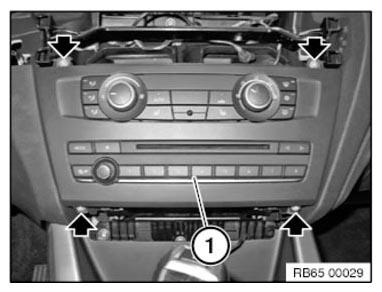

Fig 3: Locating A/C Control Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
