51 23 100 Removing and installing/replacing right engine compartment lid lock

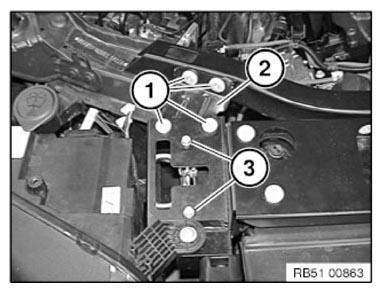

Release screws (1) and remove holder (2).

Tightening torque 51 11 3AZ .

Release screws (3).

Tightening torque 51 23 2AZ .

Fig 1: Identifying Engine Compartment Lid Lock, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

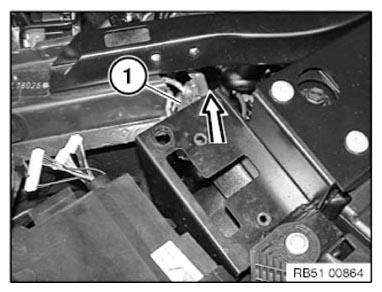

Remove engine compartment lid lock (1) in direction of arrow.

Fig 2: Removing Engine Compartment Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) in direction of arrow from engine compartment lid lock (2).

Remove engine compartment lid lock (2).

Fig 3: Removing Bowden Cable From Engine Compartment Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.
