41 00... Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

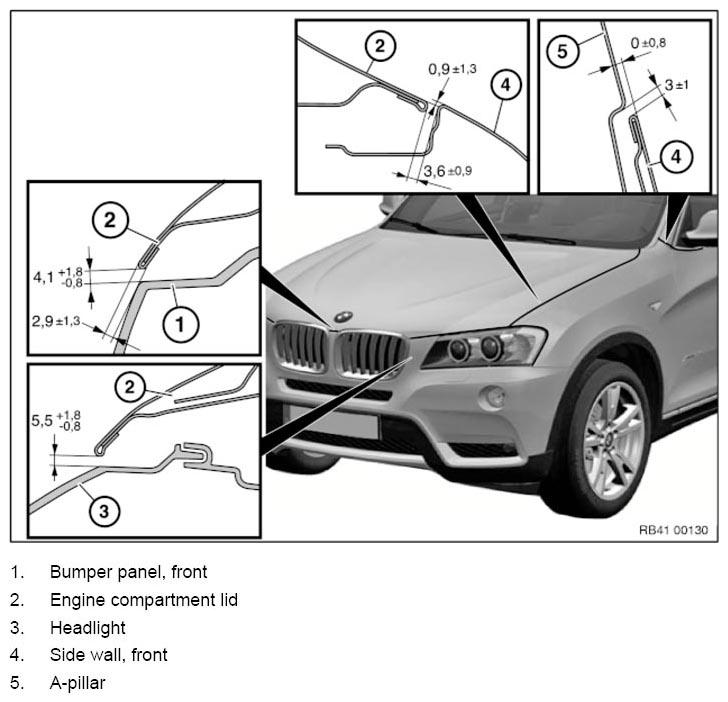

Fig 1: Hood, Grille, Headlamp, Front Bumper, Front Pillar And Fender Body Gap Dimensions And Measurement Points

G11172043

Courtesy of BMW OF NORTH AMERICA, INC.

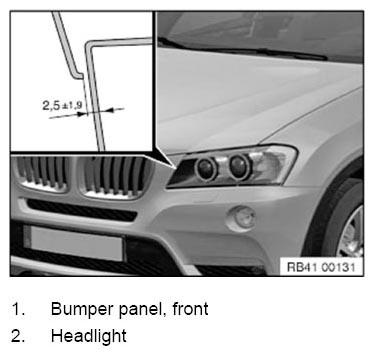

Fig 2: Front Bumper And Head Lamp Body Gap Dimensions And Measurement Points

G11172044

Courtesy of BMW OF NORTH AMERICA, INC.

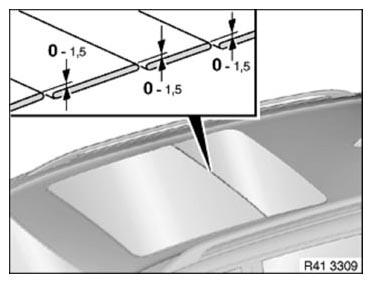

Fig 3: Moon Roof Panel Body Gap Dimensions And Measurement Points

G11172045

Courtesy of BMW OF NORTH AMERICA, INC.

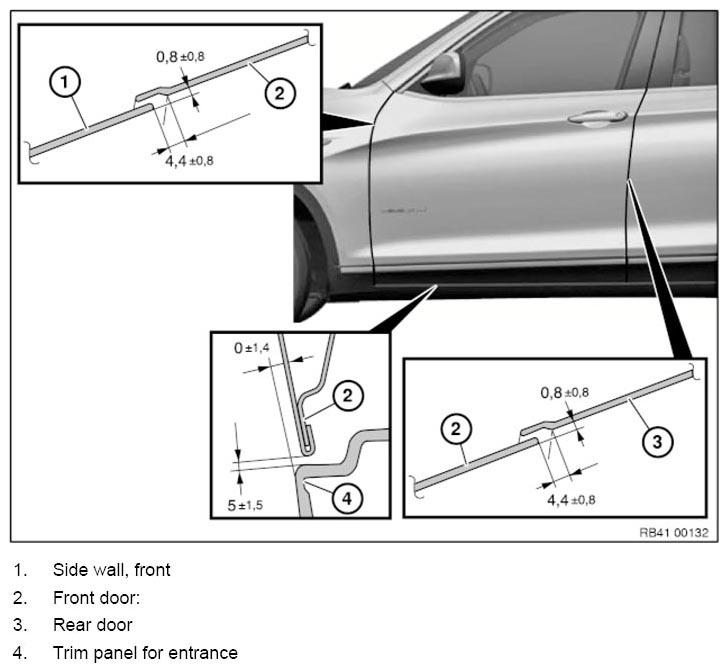

Fig 4: Front Fender, Front Door, Rear Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

G11172046

Courtesy of BMW OF NORTH AMERICA, INC.

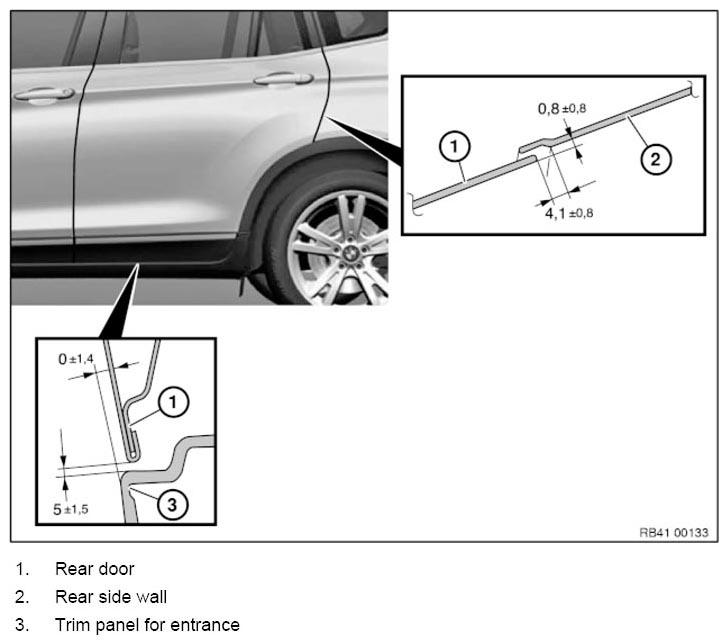

Fig 5: Rear Door, Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points

G11172047

Courtesy of BMW OF NORTH AMERICA, INC.

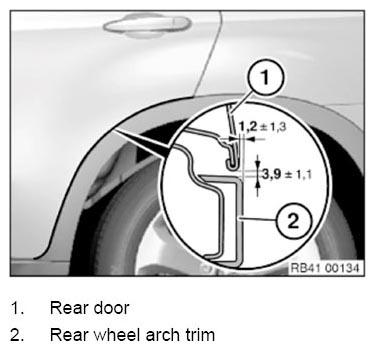

Fig 6: Rear Door And Rear Wheel Arch Trim Body Gap Dimensions And Measurement Points

G11172048

Courtesy of BMW OF NORTH AMERICA, INC.

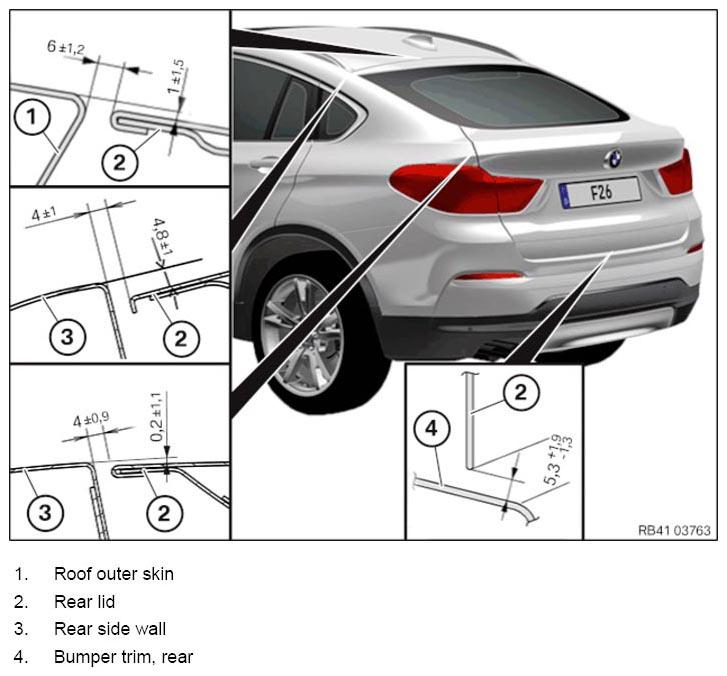

Fig 7: Roof, Quarter Panel, Tail Gate And Rear Bumper Trim Panel Body Gap Dimensions And Measurement Points

G11172049

Courtesy of BMW OF NORTH AMERICA, INC.
