63 12 010 Removing and installing or replacing left/right headlight (xenon headlight)

WARNING: Version with xenon lighting system:
Danger to life due to high voltage. Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL

Release screws (1).

Tightening torque 63 12 1AZ .

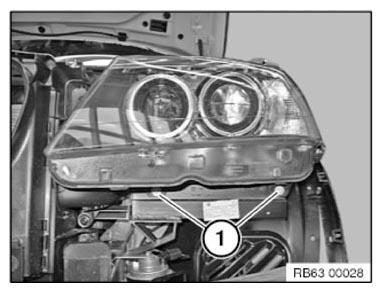

Fig 1: Identifying Left Headlight Screws (Xenon)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release screw (2).

Tightening torque 63 12 1AZ .

Release screw (3).

Tightening torque 63 12 1AZ .

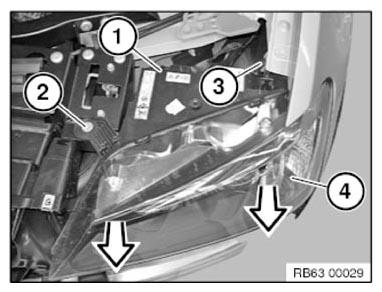

Carefully remove headlight (4) in direction of arrow.

Installation note:

ADJUST headlight.

Fig 2: Removing Left Headlight (Xenon)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs
Note BULB TYPE .

Replacement only:

Remount IGNITION UNIT FOR XENON HEADLIGHT
Remount control unit for xenon headlights
Remount headlight driver module
