51 11 185 Removing and installing/replacing side ornamental grille for bumper panel

Necessary preliminary tasks:

• Remove BUMPER PANEL

Unfasten plug connection (1) and disconnect.

Feed out cable.

Release latch mechanisms and remove ornamental grille (2).

Installation note:

Latch mechanisms must not be damaged

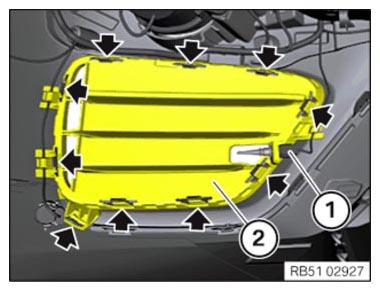

Fig 1: Locating Ornamental Grille Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Swap over OUTSIDE-TEMPERATURE SENSOR .
