51 47 312 Replacing footrest for front vehicle interior

Necessary preliminary tasks:

NOTE: The footrest has been bonded to the carpet or secured by welded plastic pins.

Loosen and remove the mounting of the footrest (1).

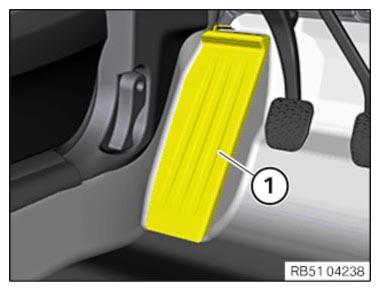

Fig 1: Identifying Footrest

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-treat the footrest (1) using primer 206.

Apply an adhesive bead (2) with Ø 5 mm to the footrest (1).

Fit footrest (1) to carpet and bond.

Fig 2: Identifying Adhesive Bead Applying Area With Footrest

Courtesy of BMW OF NORTH AMERICA, INC.
