51 47 135 Removing and installing/replacing left or right lashing rail in luggage compartment floor

Necessary preliminary tasks:

• Remove luggage compartment wheel arch panel. See REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL  or REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Release expanding rivet (1).

Unfasten screws (2).

Tightening torque 51 47 15AZ .

Feed out lashing rail (3) to the front.

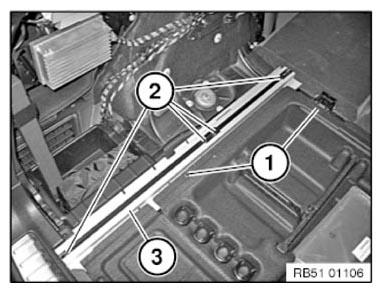

Fig 1: Identifying Lashing Rail And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
