32 34 020 Removing and installing/replacing airbag unit

WARNING: Observe the following instructions to avoid any risk of injury by the airbag unit.

Comply with safety regulations for handling components with gas generators.
Do not exert any force on the airbag unit.
Use only specified tools for releasing the airbag unit.

NOTE: Incorrect handling may result in triggering of the airbag unit and thereby cause serious injury.

IMPORTANT: STEERING WHEEL must be replaced if airbag unit has been triggered!
Follow PROCEDURE AFTER AIRBAG DEPLOYMENT .

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD .
If necessary, remove shift paddles.

Insert Torx screwdriver T25 (2) at an angle into concealed opening on reverse side of steering wheel until a spring resistance is felt (approx. 1.5 cm).

Press spring leg (1) inward until airbag is unlocked.

Repeat procedure on other side.

Installation note:

Make sure electrical leads are correctly positioned.

Snap airbag unit with uniform pressing force plane-parallel in direction of steering column shaft into steering wheel.

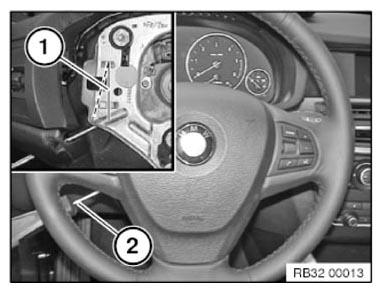

Fig 1: Pressing Spring Leg

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury!
Airbag unit may only be set down with the airbag itself facing upwards .

Tilt airbag unit forwards.

Disconnect plug connections and remove airbag unit.

Installation note:

Connect plugs to connections of same color on airbag unit.

Fig 2: Locating Plug Connections Of Airbag Unit

Courtesy of BMW OF NORTH AMERICA, INC.
