32 00 620 Adjusting rear axle

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

Adjusting camber:

Renew nut (1) and eccentric bolt (2) and tighten to 5 Nm.

Turn eccentric bolt (2) to adjust camber to setpoint value.

Tighten nut (1).

Tightening torque 33 32 10AZ .

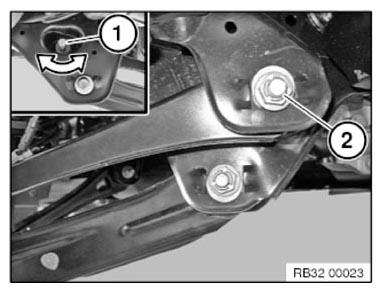

Fig 1: Turning Eccentric Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting toe:

Renew nut (2) and eccentric bolt (1) and tighten to 5 Nm.

Turn eccentric bolt (1) to adjust toe to setpoint value.

Tighten nut (2).

Tightening torque 33 32 7AZ .

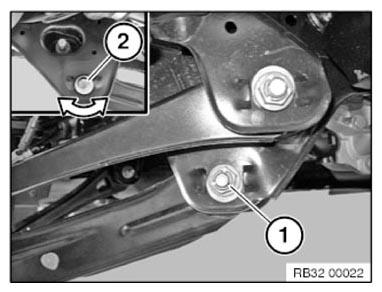

Fig 2: Turning Eccentric Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
