51 71 371 Removing and installing/replacing trailing link on left or right spring strut dome

Special tools required:

00 9 120

IMPORTANT: Vehicles must not be driven without tension struts.
Driving without trailing links may damage the vehicle body.
trailing links can be secured with screws or nuts.
Screws must be tightened to specified torque and then tightened down to specified angle of rotation with special tool 00 9 120 .

Necessary preliminary tasks:

Remove COWL PANEL COVER .

Release screws (1).

Lever out cable clip (2).

Remove cover (3).

Fig 1: Identifying Cable Clip, Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cable clip (3).

Release screws (1).

Tightening torque 51 61 1AZ .

Remove trailing link (2).

Installation note:

Replace screws (1), tighten to specified torque and then to angle of rotation.

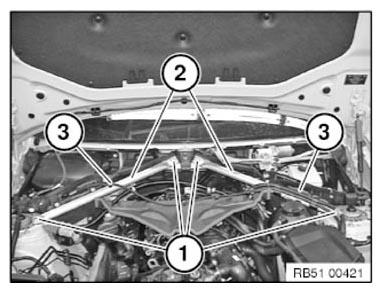

Fig 2: Identifying Trailing Link, Screws And Cable Clip
