51 47 491 Removing and installing/replacing rear underbody protection
NOTE:

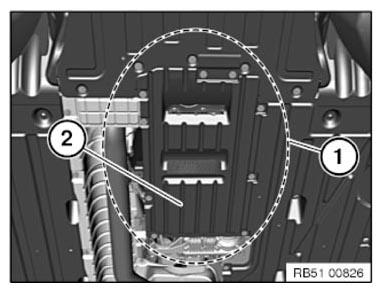

Schematic diagram created using the F25 28iX as an example. There may be differences in detail in the case of other models.
Release screws in area (1) and remove underbody protection (2).
Tightening torque 51 75 1AZ .
