61 12 062 Replacing wiring harness for front bumper panel

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Necessary preliminary tasks:

Release and disconnect plug connections in area (1).

Unlock and disconnect plug connections at the ultrasonic sensors.

Unclip wiring harness (3) in area (2).

Remove wiring harness (3).

Installation note:

Make sure wiring harness (3) is laid correctly.

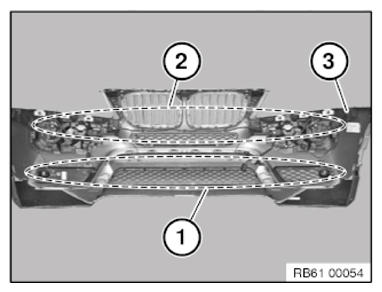

Fig 1: Identifying Plug Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.
