64 22 137 Removing and installing or replacing left fresh air grille

Necessary preliminary work:

• Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON LEFT

Release screws (1).

Pull out left fresh air vent (2) towards front.

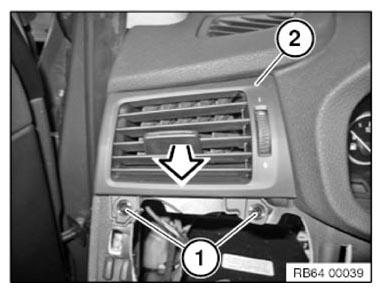

Fig 1: Pulling Out Left Fresh Air Vent Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Version with automatic climate control:

Unfasten plug connection (1) and disconnect.

Remove left fresh-air grille (2).

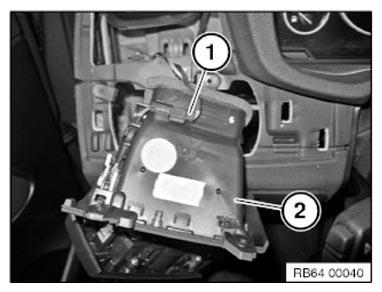

Fig 2: Identifying Left Fresh-Air Grille And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
