12 42 500 Replacing positive battery cable between starter motor, alternator and positive battery connection point (N20)

Necessary preliminary tasks:

Release screw (1).

Lever out cable clip (2).

Remove cover (3).

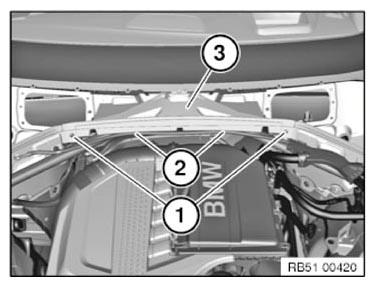

Fig 1: Identifying Cable Clip, Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back cover (1).

Release nut underneath. Remove positive battery cable from positive battery connection point.

Tightening torque 12 42 3AZ .

Fig 2: Identifying Back Cover Of Positive Battery Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip positive battery cable (1) from brackets (2) at rear of engine block.

Fig 3: Identifying Positive Battery Cable And Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap (1) and release nut underneath.

Tightening torque: 12 42 1AZ .

Release nut (2) on starter.

Tightening torque 12 42 2AZ .

Disconnect positive battery cable (3) from alternator and starter motor. Feed out positive battery cable (3) and remove.

Fig 4: Identifying Protective Cap, Positive Battery Cable And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Reassemble the vehicle.
Check stored fault messages.
Delete fault memory.
