11 43 000 Removing and installing/sealing oil dipstick guide tube (N47 D20 01)
Necessary preliminary work:
- Remove acoustic cover. See 13..... REMOVE ACOUSTIC COVER (N47 D20 O/T1) .
- Remove UNDERBODY PROTECTION .

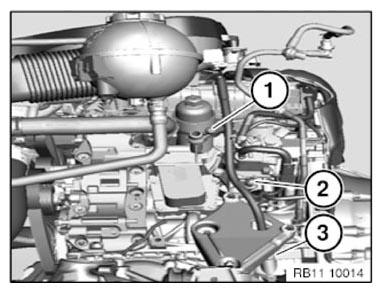

Release screw (1) on oil filter housing.
Release engine wiring harness and vacuum line on guide tube for oil dipstick (2).
Release oil dipstick guide tube from oil sump.
Installation note:
Replace O-ring in engine oil sump.
