11 74 507 Replacing the pressure converters for exhaust turbocharger (N20)

Necessary preliminary tasks:

• Remove ACOUSTIC COVER .

Disconnect plug connection (1).

Remove vacuum line (OUT).

Unfasten screws (2).

Remove pressure converter (3).

Installation note:

If the pressure converter is renewed, the (VAC) line must be converted.

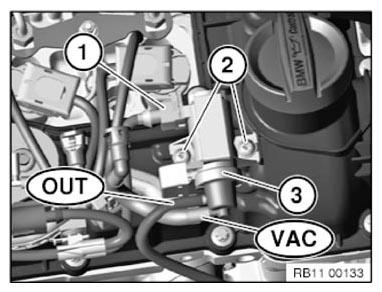

Fig 1: Identifying Pressure Converter And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

Check function of DME.
