51 34 425 Removing and installing/replacing trim on window frame of rear left or right door

Removal:

Version up to 04/2014:

Detach sealing (1) from trim (3).

Release screws (2).

Remove trim (3) towards rear.

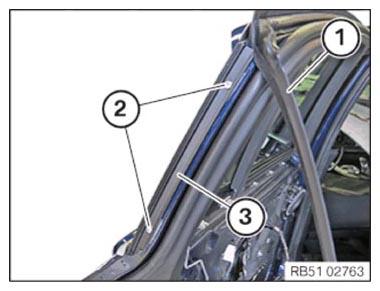

Fig 1: Identifying Right Door Sealing, Trim And Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Version after 04/2014:

Detach sealing (1) from trim (3).

Release screws (2).

Remove trim (3) towards rear.

Fig 2: Identifying Right Door Sealing, Trim And Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version up to 04/2014:

Install trim (3).

Tighten screws (2).

Fit sealing (1) on trim (3).

Fig 3: Identifying Right Door Sealing, Trim And Screen

Courtesy of BMW OF NORTH AMERICA, INC.

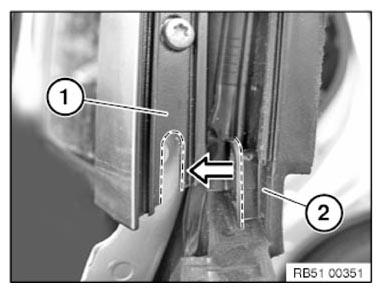

NOTE: The guide of the sealing (2) must be fed correctly into the recess in the trim (1).

Fig 4: Installing Door Sealing Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Version after 04/2014:

Install trim (3).

Tighten screws (2).

Fit sealing (1) on trim (3).

Fig 5: Identifying Right Door Sealing, Trim And Screen

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The guide of the sealing (2) must be fed correctly into the recess in the trim (1).

Fig 6: Installing Door Sealing Guide

Courtesy of BMW OF NORTH AMERICA, INC.
