51 16 383 Removing and installing/replacing damper for glove box

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary work:

• Remove RIGHT GLOVE BOX

Release pin (1).

Turn damper by 90° in the direction of the arrow and disconnect.

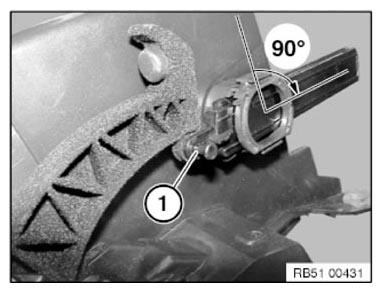

Fig 1: Identifying Damper Turn Angle

Courtesy of BMW OF NORTH AMERICA, INC.
