51 16 080 Removing and installing or replacing sun visor and left or right counter support
Special tools required:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

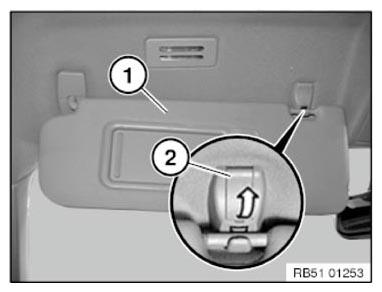

Detach sun visor (1) from counter support (2).
Lever out cover on counter support (2) and release screw underneath.
Tightening torque 51 16 2AZ .
Remove counter supports (2).

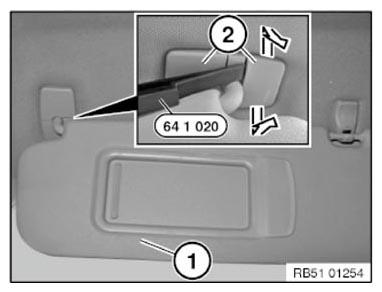

Twist sun visor (1) accordingly and lever out covers (2) with special tool 64 1 020 in direction of arrow.
Feed out sun visor (1).
Unlock associated plug connection and disconnect.
Installation note:
Perform function check on lighting.
