51 71 039 Removing and installing/replacing front left or right wheel arch cover (rear part)

Necessary preliminary work:

Removal:

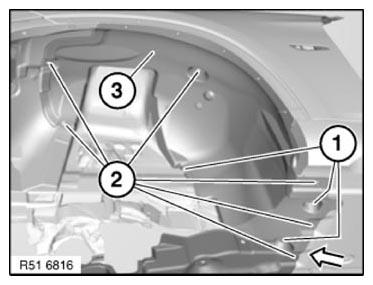

Version up to 04/2014:

NOTE: For clarity the vehicle is only partially pictured.

Release nuts (1) and screws (2).

Thread cover (3) out.

Fig 1: Identifying Wheel Arch Cover Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

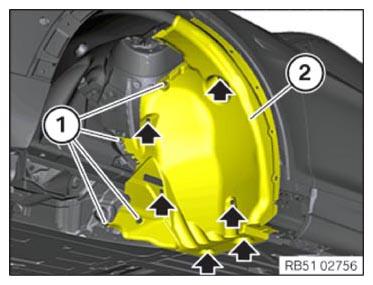

Version after 04/2014:

NOTE: For clarity the vehicle is only partially pictured.

Release nuts and screws (1).

Thread cover (2) out.

Fig 2: Locating Wheel Arch Cover Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version up to 04/2014:

Thread cover (3) in.

Tighten nuts (1) and screws (2).

NOTE: in the area of the arrows side sill or front underbody protection overlaps the cover (3).

Fig 3: Identifying Wheel Arch Cover Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version after 04/2014:

Thread cover (2) in.

Tighten nuts and screws (1).

Fig 4: Locating Wheel Arch Cover Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
