51 32 420 Removing and installing/replacing trim cover on front door window frame, left or right

Necessary preliminary tasks:

Pull rubber window seal (1) out of rear window guide.

Installation note:

Moisten rubber window seal (1) slightly with water to facilitate installation.

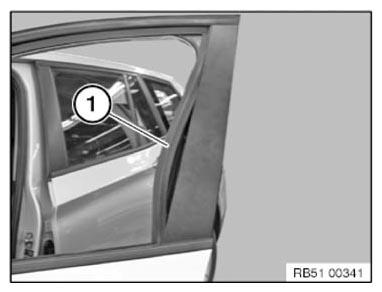

Fig 1: Identifying Rubber Window Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

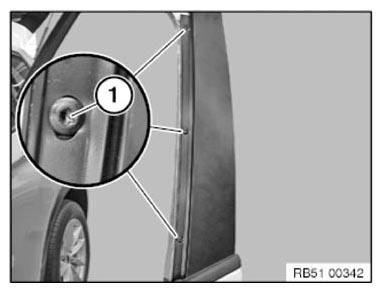

Fig 2: Identifying Rubber Window Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Push trim cover on window frame (2) down slightly until it can be fed out at the top at the rubber window seal (1).

Now carefully pull out trim cover at window frame (2) upwards and toward the rear.

Installation note:

Sealing on end plate of B-pillar (3) must not be damaged or missing.

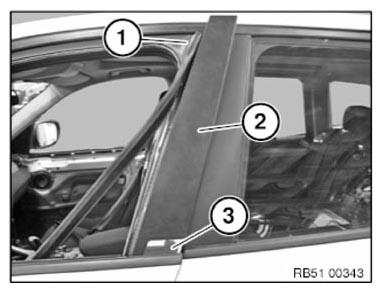

Fig 3: Identifying Window Frame, Seal And B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Correctly slide trim cover on window frame (1) over sheet metal edge (3) and rubber window seal (2).

Fig 4: Identifying Window Frame And Sheet Metal Edge

Courtesy of BMW OF NORTH AMERICA, INC.
