67 62 020 Removing and installing/replacing flat motor for rear left or right power window regulator

IMPORTANT: Before replacement of flat motor, observe NOTES on installation status!

Necessary preliminary work:

Release screws (1).

Remove flat motor (2) from power window regulator.

IMPORTANT: Ensure that the flat motor (2) is assembled without tension.

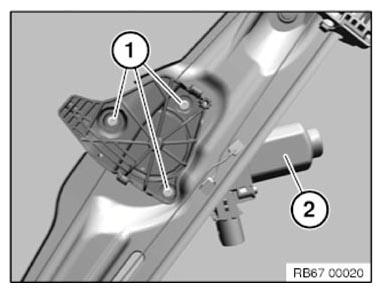

Fig 1: Identifying Power Window Regulator, Flat Motor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

An initialization must be carried out in order to activate anti-trap mechanism.

Read and comply with NOTES on initialization of power window regulator.
