51 15 360 Removing and installing/replacing protective strip on left or right rear door

Special tools required:

00 9 325

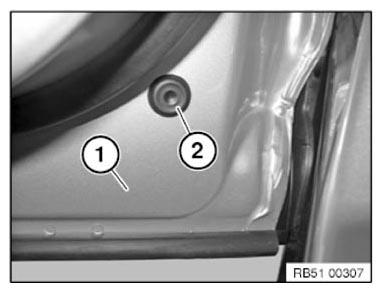

Lever out rubber grommet (2) from inner door panel (1).

Installation note:

Rubber grommet (2) must not be damaged or missing.

Fig 1: Identifying Inner Door Panel And Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

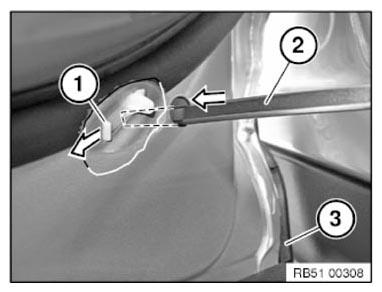

Pass a suitable screwdriver (2) through the bore hole and press on clip (1) at the rear clip lug until you feel it detach and lever it out toward the rear.

Pull protective strip (3) toward the hear to assist in this operation.

Fig 2: Pulling Protective Strip

Courtesy of BMW OF NORTH AMERICA, INC.

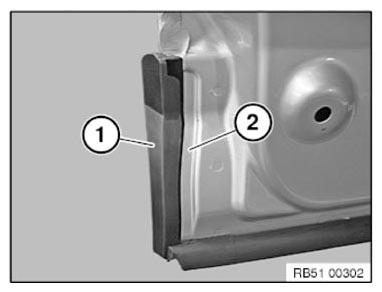

Installation note:

Place tab of protective strip (1) correctly over door edge (2).

Fig 3: Identifying Protective Strip And Door Edge

Courtesy of BMW OF NORTH AMERICA, INC.

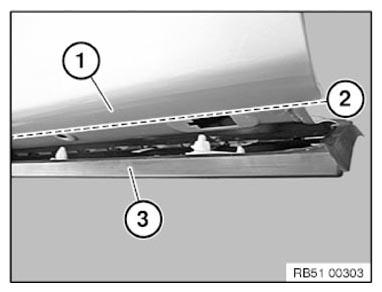

Clip out protective strip (3) from front to rear.

Use special tool 00 9 325 to help clip out the component, but always position it below the crimped edge (2) of the outer door panel (1).

Fig 4: Identifying Protective Strip And Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

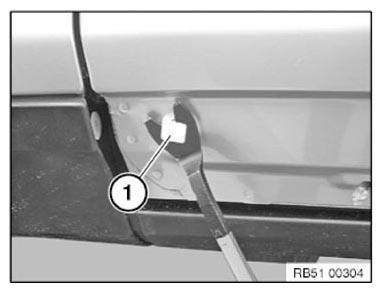

Installation note:

Lever stuck clips (1) out of the outer door panel using a suitable tool.

IMPORTANT: Avoid damaging the paintwork.

Fig 5: Removing Outer Door Panel Clip

Courtesy of BMW OF NORTH AMERICA, INC.

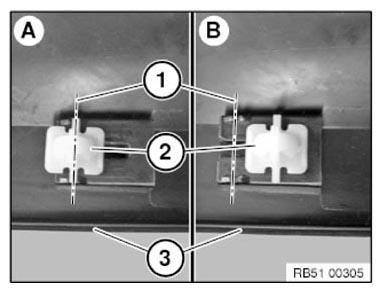

Installation note:

Install retaining clip (2) correctly.

Insert retaining clip(2) correctly into latch mechanisms (1) of protective strip (3).

Graphic A = correctly installed

Graphic B = incorrectly installed

Fig 6: Identifying Door Retaining Clip Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

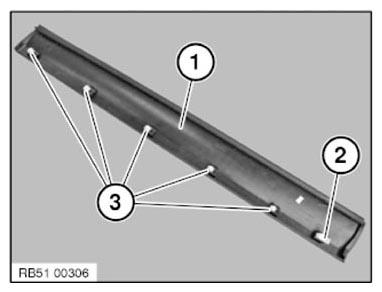

Installation note:

Clips (2) and (3) must not be damaged or missing.

Replacement

Modify clips (2) and (3).

Fig 7: Identifying Door Clips

Courtesy of BMW OF NORTH AMERICA, INC.
