51 12... Removing and installing/replacing lower cover (middle)

Release expanding rivets (1).

Unscrew nuts (2).

Tightening torque 51 12 9AZ .

Remove cover (3).

Installation note:

Replace expanding rivets (1).

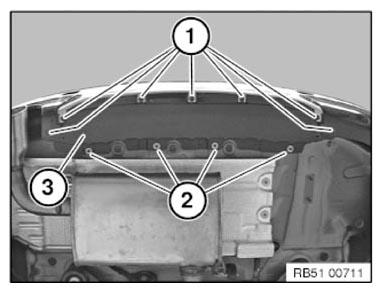

Fig 1: Identifying Lower Cover Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
