51 12 828 Removing and installing/replacing guide for bumper, rear left or right

Necessary preliminary tasks:

• Remove REAR BUMPER

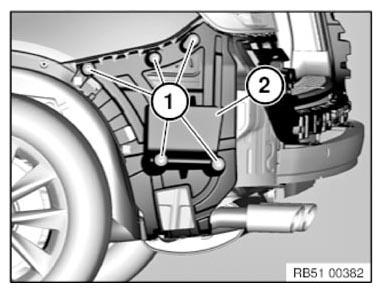

Unscrew nuts (1).

Tightening torque 51 12 3AZ .

Remove guide (2).

Installation note:

Latch mechanisms of guide (1) must not be damaged or missing.

Replace faulty sheet metal nuts (2).

Water ingress!

Replace sealing ring (3).
