51 12 825 Removing and installing/replacing guide for rear center bumper

Necessary preliminary tasks:

• REMOVE  rear bumper trim

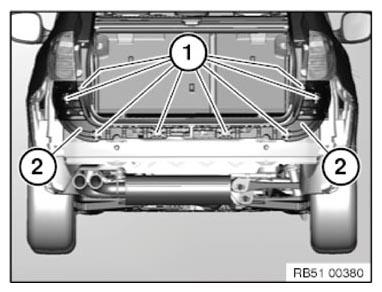

Unscrew nuts (1).

Tightening torque 51 12 2AZ .

If necessary, feed out cable for Park Distance Control.

Remove guides (2).

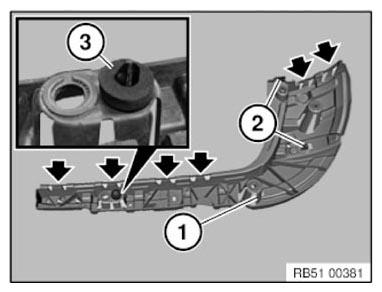

Installation note:

Latch mechanisms of guide (1) must not be missing or damaged.

Replace faulty sheet metal nuts (2).

Water ingress!

Replace sealing ring (3).
