51 12 050 Removing and installing/replacing support for rear bumper panel
Necessary preliminary tasks:
- Remove BUMPER PANEL

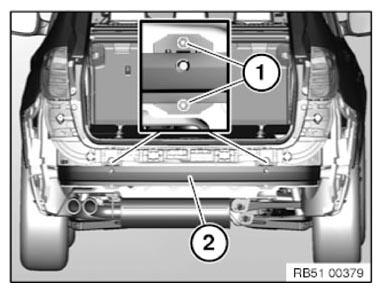

Release all nuts (1).
Tightening torque 51 12 1AZ .
Remove support (2).
Installation note:
Water ingress!
Bolts for nuts (1) must be sealed with SEALANT 1 towards tail panel.
Replace gasket between support (2) and body every time after dismantling.
