51 45 075 Removing and installing/replacing carrier for instrument panel

Necessary preliminary tasks:

Version with Head-Up Display:

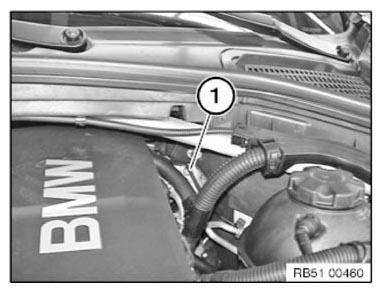

Undo bolts (1) on bulkhead.

Tightening torque 51 45 8AZ .

Fig 1: Identifying Bulkhead Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

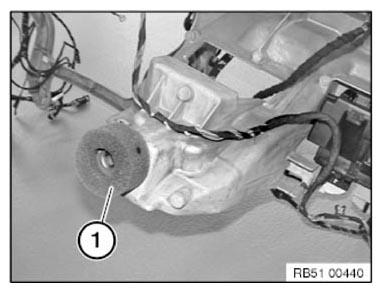

Seal (1) between carrier and bulkhead must not be damaged or missing.

Fig 2: Identifying Between Carrier And Bulkhead Seal

Courtesy of BMW OF NORTH AMERICA, INC.

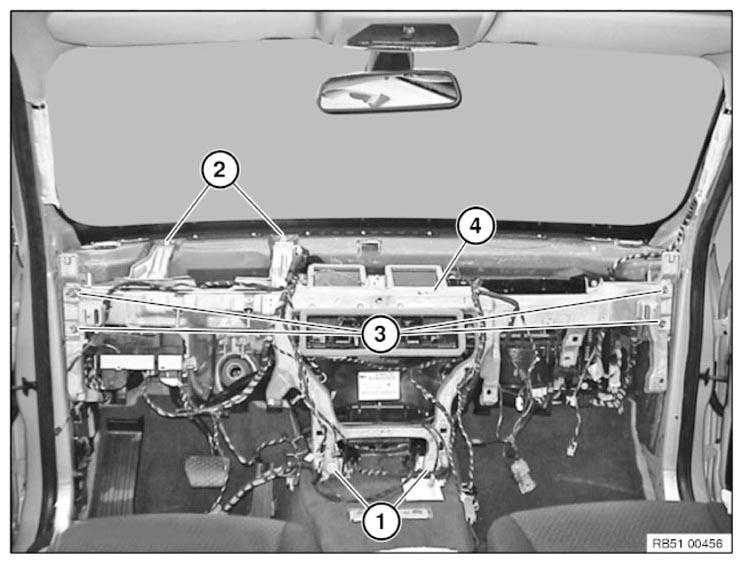

Fig 3: Identifying A-Pillar Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on tunnel.

Tightening torque 51 45 3AZ .

Loosen screws (2) by approx. 2 turns.

Tightening torque 51 45 3AZ .

Release nuts (3) on A-pillar.

Tightening torque 51 45 2AZ

Remove dashboard support and feed out through driver's door.

Replacement:

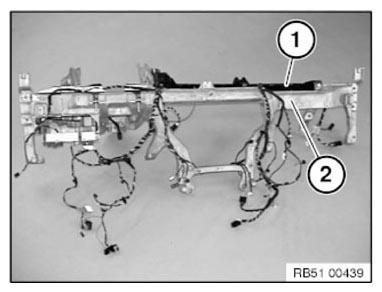

Remount wiring harness (1) on support (2).

Fig 4: Identifying Dashboard Support Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
