51 11... Removing and installing/replacing front bumper trim cover (X line)

Release screws (1).

Tightening torque 51 75 1AZ .

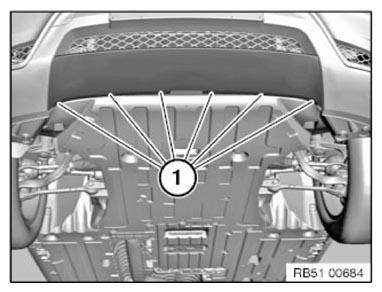

Fig 1: Identifying Bumper Trim Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release latch mechanisms (1) and remove cover (2) towards front.

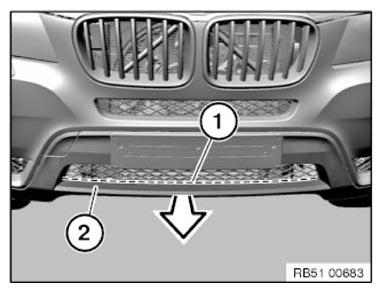

Fig 2: Releasing Bumper Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on cover (2) must not be damaged or missing.

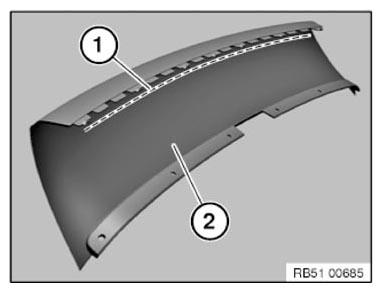

Fig 3: Identifying Bumper Trim Cover Latch Mechanisms And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
