The radio remote control of the Rear Seat Entertainment system

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

To teach a new radio remote control, first the radio remote control used to date must be deleted in the Car Access System and the routine for reaching the new radio remote control must be started. This sequence takes place in the test module.

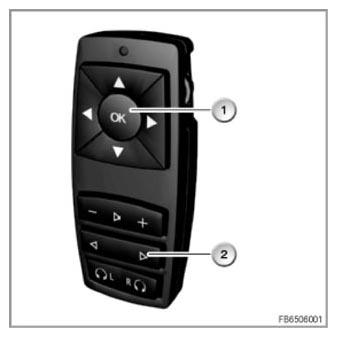

Fig 1: Identifying Radio Remote Control Of Rear Seat Entertainment System
G09912486Courtesy of BMW OF NORTH AMERICA, INC.
Button Function
1 OK button
2 Scan up button

To teach the radio remote control, start test module B6512_RSEFFB and follow the instructions.
