Brief description of components: Notes
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The following components are described for the RTTI splitter:
- IBOC: In Band On Channel
- CCC: Car Communication Computer

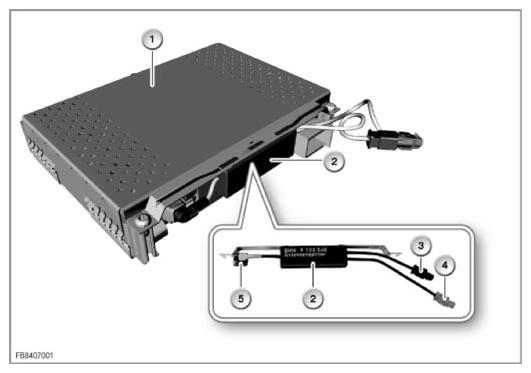

| Index | Explanation |
|---|---|
| 1 | IBOC |
| 2 | RTTI splitter with bracket |
| 3 | AM/FM signal (antenna amplifier with diversity module) Connector color code: black |
| 4 | AM/FM signal (CCC) Connector color code: curry-yellow |
| 5 | AM/FM signal (IBOC) Connector color code: black |
