Section 671 (Functional Description - Information & Entertainment Systems)
>>
Information & Entertainment System - Functional Description
>>
Park Distance Control (PDC)
>>
Arrangement of the rear ultrasonic sensors
Arrangement of the rear ultrasonic sensors
WARNING:
This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

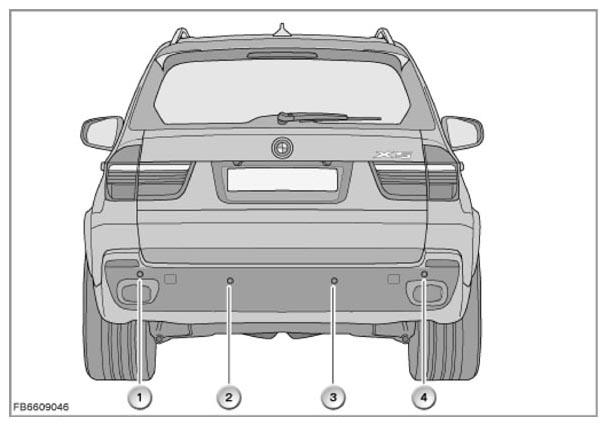

Fig 1: Identifying Rear Ultrasonic Sensors Position
Courtesy of BMW OF NORTH AMERICA, INC.
Item
Description
1
Ultrasonic sensor, rear outer left
2
Ultrasonic sensor, rear center left
3
Ultrasonic sensor, rear center right
4
Ultrasonic sensor, rear outer right
