CON: Rear-compartment controller

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

In vehicles with rear seat entertainment system, a rear-compartment controller is connected on the K-CAN. The rear-compartment controller is identical to the front controller.

In the rear passenger compartment, there are 2 folding rear monitors, each with 800 x 480 pixel resolution as well as an infrared transmitter unit (SA6FG or SA6FH). The rear monitors are integrated in the backrests of the front seats. On both versions, the control unit (RSE) is integrated for the first time in the MOST bus. The Car Information Computer (CIC) serves as the master control unit for the MOST bus.

The rear monitors are also connected on the K-CAN.

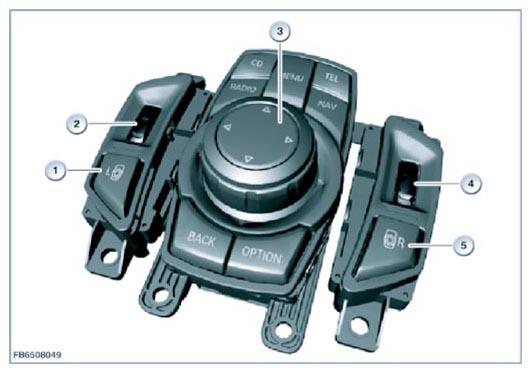

Fig 1: Identifying CON Rear-Compartment Controller

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	Selector key, left
2	Knurled wheel for volume, left
3	Rear-compartment controller (FCON)
4	Knurled wheel for volume, right
5	Right selector key

When pressed, the "Back" button returns the user to the last screen mask. The "Option" button enables other settings in the last selected sub-menu.

The selector keys are used now instead of pushing the controller for a longer period in a certain direction.
