IBOC system network
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

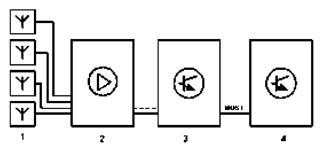

The graphic shows the receiver with the digital tuner US.
- AM/FM aerials
- Aerial amplifier
- Digital tuner US (if separate IBOC control unit is installed)
- Headunit
Courtesy of BMW OF NORTH AMERICA, INC.
