Roof function center (FZD)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The FZD receives information from the inside mirror. The FZD is connected across the K-CAN with the footwell module (FRM) and the junction box electronics (JBE).

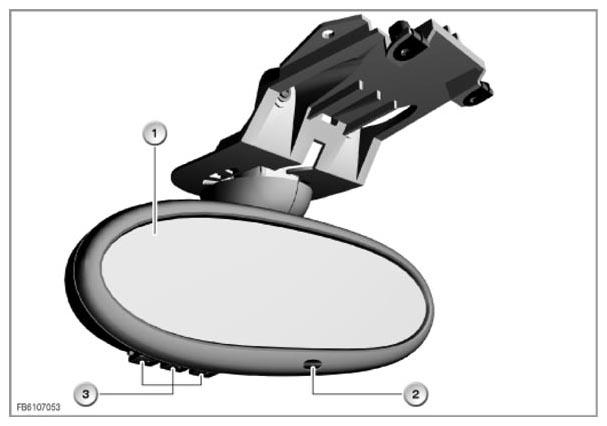

Graphic shows inside mirror on the R56
| Item | Description |
|---|---|
| 1 | Inside mirror glass (electrochromatic) |
| 2 | Photosensor for automatic-dim feature (electrochromatic) |
| 3 | Buttons for the integrated universal remote control |

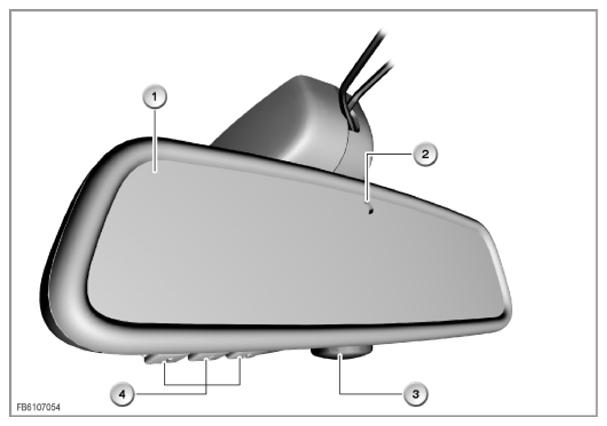

Graphic shows the inside mirror on the E70
| Item | Description |
|---|---|
| 1 | Inside mirror glass (electrochromatic) |
| 2 | Photosensor for automatic-dim feature (electrochromatic) |
| 3 | LED for the anti-theft alarm system (DWA) |
| 4 | Buttons for the integrated universal remote control |
