Front base plate

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

The base plate for mounting the mobile phone via the snap-in adapter is located in the center armrest (with the optional equipment SA6NF extended connection of the music players in the mobile phone). Depending on the mobile phone used, a special snap-in adapter may be required. The snap-in adapter inserted into the base plate instead of the storage tray.

The mobile phone is charged and connected with the roof-mounted aerial via the snap-in adapter. A USB connection and an AUX-IN connection is also established with the vehicle. These functions can vary depending on the BMW snap-in adapter.

Depending on the vehicle equipment, the base plate will have an integrated video connection. The connection is for the playback of video files from a connected smartphone.

The BMW snap-in adapters are only available for BMW Group approved mobile phones and can vary depending on the vehicle and equipment.

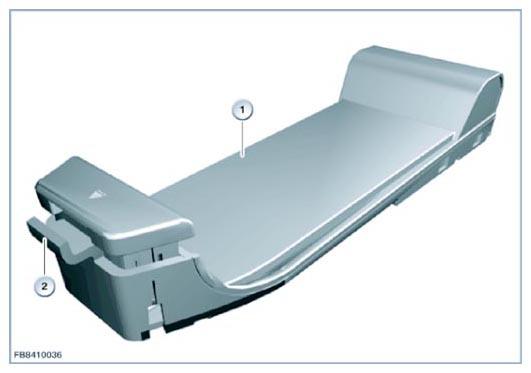

Fig 1: Identifying Base Plate And Eject Button

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Base plate
2	Eject button

NOTE: Base plate for rear compartment telephone!

For the optional equipment rear compartment telephone, there is one base plate for the mobile phone and handset in the rear center armrest.
